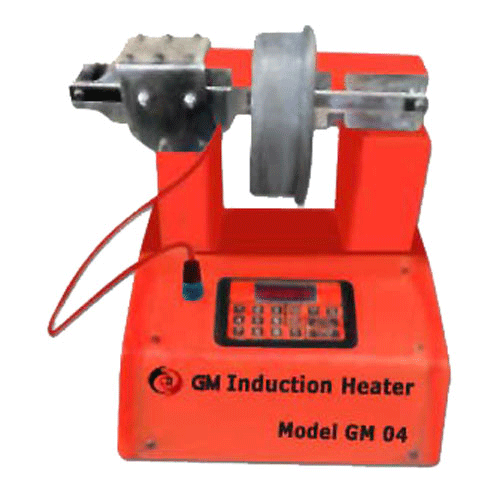

Induction Heater GM 04 (3.0/ 4.0 KVA)

An industrial induction heater is a device that uses electromagnetic induction to generate heat in a conductive material, without making physical contact. This is achieved by passing a high-frequency electric current through a copper coil, which creates a strong magnetic field that induces eddy currents in the material being heated. The resistance of the material to these currents causes it to heat up rapidly, making it useful for a variety of industrial applications.

The industrial induction heater with a power value of 3.0/4.0 KVA. This unit features intelligent microcontroller-based programmable electronic controls, which make it easy to operate and control. The heater has two operating modes: Temperature mode and Time mode, both of which are controlled through a feather touch keyboard. Both modes can be seen at the time of operation, making it easy to monitor and adjust the heating process as needed.

The induction heater is used for a variety of applications, such as heating bearings of larger diameter using a pair of Riser Blocks size 55 x 55 x 130 mm. It can also be used to heat a plate of any magnetic material by placing the plate in place of the horizontal yoke across the vertical supports. This makes it a versatile and useful tool for many different industries, including manufacturing, automotive, and aerospace.

Overall, GM Industries is a leading induction heating equipment manufacturer in India that offers a reliable and efficient tool for heating conductive materials. Its intelligent controls and versatile applications make it a valuable asset for any industrial setting.

Specifications of Induction Heater GM 04 (3.0/ 4.0 KVA)

Product Name Induction Heater GM 04 (3.0/ 4.0 KVA)
Model No GM 04
Bearing Weight (KG) 32
Bearing Diameter (mm) 20 to 300
Power 3.0 to 4.0 KVA
Voltage 230V ±10%, 50-60Hz
Current (Max) 10 / 18A
Power Control In step of 10% or 25 % to 100%
Temperature Control (Range) 0-250oC
Maximum Temperature 400oC
Accuracy Temperature ± 3oC
Time-Control 0-99 Minutes
Demagnetisation (Automatic) <2 A/cm
Overall dimensions (WxDxH) (mm) 300 X 295 X 415
Space between supports (wxh) (mm) 130 X 150
Weight (Main Unit) 28 Kg
Weight with Standard Yokes 33 Kg
Horizontal York Sizes (mm) 20 X 20 X 250 for bore dia.
30 X 30 X250 for bore dia. 40 MM & above
55 X 55 X 250 for bore dia. 75 MM & above
Colour of the Equipment Red

Blue

Green

Optional Accessories

Horizontal Yoke Sizes (mm) 10 X 10 X 250 for bore dia. 12 MM & above
15 X 15 X 250 for bore dia. 20 MM & above
40 X 40 X 250 for bore dia. 55 MM & above
45 X 45 X 250 for bore dia. 61 MM & above
Digital Thermometer (0-500 oC)
Roll-Sliding Model
Swing Arm Model
Riser Block (Pair) (mm)
Magnetic Temperature Probe
Equipment Trolley
Hydraulic Equipment Trolley
Customisation

Call Us

+(91)-9820533489 / 7738562224

Features of Induction Heater GM 04 (3.0/ 4.0 KVA)

The Induction Heater GM 04 offered by GM Industries has several notable features, including:

  • Power Capacity: The induction Heater has a power capacity of 3.0/4.0 KVA, making it capable of heating a wide range of materials.
  • Programmable Controls: The controls of the GM 04 are intelligent microcontroller-based and programmable. This allows for precise temperature and time control, making it easy to use and adjust for specific heating needs.
  • Dual Operating Modes: The industrial induction Heater has two operating modes: Temperature mode and Time mode. This allows for flexibility in the heating process, depending on the specific material being heated.
  • Feather Touch Keyboard: The controls of this heater are operated through a feather touch keyboard. This makes it easy to operate and adjust the settings with minimal effort.
  • Monitoring: Both Temperature mode and Time mode can be seen at the time of operation, allowing for real-time monitoring of the heating process.
  • Versatile Applications: The Induction Heater GM 04 (3.0/ 4.0 KVA) is used to heat bearings of larger diameter using a pair of Riser Blocks size 55 x 55 x 130 mm. It can also heat a plate of any magnetic material by placing the plate in place of the horizontal yoke across the vertical supports. This makes it useful in a variety of industrial settings.

Overall, the GM 04 Induction Heater offers precise control and versatile applications, making it a valuable tool for heating a wide range of materials in industrial settings.

Advantages of Induction Heater GM 04 (3.0/ 4.0 KVA)

There are several advantages of using an Induction Heater with a power value of 3.0/4.0 KVA, such as the GM Industries GM 04 model:

  • Efficient Heating: Induction heating is a fast and efficient method of heating, as it heats only the material being heated, not the surrounding environment. This results in faster heating times and lower energy consumption compared to traditional heating methods.
  • Precise Control: The GM 04 Induction Heater offers precise temperature and time control, making it easy to heat materials to the exact temperature required. This results in consistent quality and improved production efficiency.
  • Safe Operation: Induction heating is a safe method of heating, as there are no open flames or hot surfaces involved. The GM 04 Industrial Induction Heater also features safety measures to prevent overheating and other potential hazards.
  • Multipurpose Applications: The GM 04 Induction Heater can be used to heat a wide range of materials, including bearings, plates, and other magnetic materials. This makes it a versatile tool for a variety of industrial applications.
  • Cost-Effective: The fast heating times and efficient energy consumption of induction heating can result in cost savings over time, as less energy is needed to heat materials to the required temperature.

Overall, the advantages of using an Induction Heater with a power value of 3.0/4.0 KVA, such as the GM Industries GM 04 model, include efficient heating, precise control, safe operation, versatile applications, and cost-effectiveness. These benefits make it a valuable tool for a variety of industrial settings.

Applications of Induction Heater GM 04 (3.0/ 4.0 KVA)

The Induction Heater GM 04 (3.0/4.0 KVA) offered by GM Industries has a variety of applications in different industries. Here are some industry-wide applications:

  1. Automotive Industry: The GM 04 Induction Heater is used for heating bearings, shafts, and gears in the automotive industry. It can also be used for brazing and welding of metal components, and for heat treatment of parts to improve their mechanical properties.
  2. Aerospace Industry: The aerospace industry uses Induction Heater for heat treatment of various metals used in the construction of aircraft components. It can also be used for annealing, brazing, and welding of different materials.
  3. Manufacturing Industry: The GM 04 Induction Heater is used in the manufacturing industry for heating and bending of metal plates. It can also be used for heat treatment of various metal parts, and for brazing and welding of components.
  4. Electrical Industry: The GM 04 Induction Heater is used in the electrical industry for brazing and welding of copper wires and cables. It can also be used for heat treatment of various electrical components, including transformers and motors.
  5. Construction Industry: The construction industry uses GM 04 Induction Heater for heating and bending of metal plates used in the construction of bridges, buildings, and other structures. It can also be used for heat treatment of steel and other metal parts.

Overall, the GM 04 Induction Heater has wide-ranging applications in different industries, making it a versatile tool for a variety of industrial processes.

Applications 1
Why Choose Us?

GM Industries offers a high-quality Industrial Induction Heater with a power value of 3.0/4.0 KVA that is suitable for a wide range of industrial applications. With its intelligent microcontroller-based programmable electronic controls, the GM 04 Induction Heater provides precise control and efficient heating for various materials. Additionally, the company offers industry-wide applications to help customers choose the right Induction Heater for your specific needs. Whether it’s for the automotive, aerospace, manufacturing, electrical, or construction industry, GM Industries has the expertise and experience to provide customers with the right solution. By choosing GM Industries, customers can be confident that they are getting a reliable and efficient Induction Heater that will meet their industrial heating needs.
