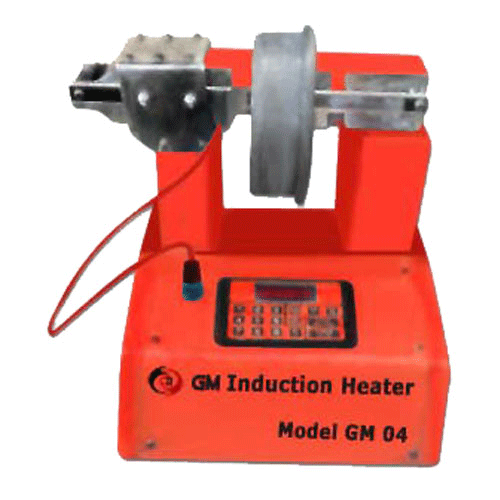

Induction Heater GM 04 M (3.6 /4.6 KVA)
Introduction to Induction Heater GM 04 M (3.6 /4.6 KVA)
An industrial induction heater is a device that uses electromagnetic induction to heat metal objects rapidly and precisely. The heater generates high-frequency electromagnetic fields, which induce eddy currents within the metal object. These currents produce heat, causing the object to reach the desired temperature quickly and efficiently.
The induction heater has a power capacity of 3.6 to 4.6 KVA and features intelligent microcontroller-based programmable electronic controls. The controls have two operating modes: Temperature mode and Time mode, which can be controlled through a feather touch keyboard. During operation, both modes can be seen, providing ease of use and precision.
The induction heater from GM Industries can be used in various applications, such as heating bearings of larger diameter using a pair of Riser Blocks. It can also be used to heat a plate of any magnetic material by placing the plate in place of the horizontal yoke across the vertical supports. These capabilities make it a versatile tool for many industrial processes.
GM Industries is a company that specializes in manufacturing industrial induction heaters, among other products. Overall, GM Industries is a leading induction heating equipment manufacturers in India that offers a reliable and efficient tool for heating conductive materials. Its intelligent controls and versatile applications make it a valuable asset for any industrial setting.
Specifications of Induction Heater GM 04 M (3.6 /4.6 KVA)
| Product Name | Induction Heater GM 04 M (3.6 /4.6 KVA) |
| Model No | GM 04 M |
| Bearing Weight | 110 Kg |
| Bearing Diameter (mm) | 20 to 425 |
| Power | 3.6 / 4.6 KVA |
| Voltage | 230V / 415V ±10%, 50-60Hz |
| Power Control | in step of 10% or 25% to 100% |
| Temperature Control (Range) | 0-250°C |
| Maximum Temperature | 400°C |
| Accuracy Temperature | ± 3°C |
| Time-Control | 0-99 Minutes |
| Demagnetisation (Automatic) | < 2A / cm |
| Overall dimensions (WxDxH) (mm) | 690 X 265 X 415 |
| Space between supports (WxH) (mm) | 160 X 210 |
| Weight (Main Unit) | 42 Kg |
| Weight with Standard Yokes | 53 Kg |
| Horizontal York Sizes (mm) | 14 X 14 X 300 28 X 28 X 300 56 X 56 x 300 |
| Colour of the Equipment | Red
Blue Green |
Optional Accessories
| Horizontal Yoke Sizes (mm) | 20 X 20 X 300
25 X 25 X 300 40 X 40 X 300 45 X 45 X 300 |
| Digital Thermometer (0-500 degree C) | |
| Roll-Sliding Model | |
| Swing Arm Model | |
| Riser Block (Pair) (mm) | |
| Magnetic Temperature Probe | |
| Equipment Trolley | |
| Hydraulic Equipment Trolley | |
| Customisation |
Call Us
+(91)-9820533489 / 7738562224
Enquiry Form
Submit
Features of Induction Heater GM 04 M (3.6 /4.6 KVA)
Induction Heater GM 04 M (3.6 / 4.6 KVA) is a device that is used for heating metal parts using electromagnetic induction. Some of its features include:
-
- Power output: The device has a power output of 3.6 / 4.6 KVA, which determines its heating capacity.
- Heating coil: Induction Heater is equipped with a high-quality heating coil that is made of copper tubing, which ensures efficient heat transfer.
- Control panel: The intelligent microcontroller-based programmable electronic controls provide precise and customizable temperature and time settings, allowing for consistent and accurate heating of materials.
- Safety features: The device has safety features such as overvoltage protection, overcurrent protection, and overheat protection, which ensure safe operation and prevent damage to the device.
- Temperature control: The Induction Heater has temperature control features that allow for precise heating, ensuring consistent and accurate results.
Overall, Induction Heater GM 04 M (3.6 / 4.6 KVA) is a reliable and efficient device that can be used for a variety of metal heating applications.
Advantages of Induction Heater GM 04 M (3.6 /4.6 KVA)
The Induction Heater GM 04 M (3.6 /4.6 KVA) from GM Industries offers several advantages in industrial heating applications:
- High Efficiency: The use of electromagnetic induction for heating provides rapid and efficient heating, resulting in faster production times and lower energy costs.
- Versatile: The induction heater is used to heat a variety of metal objects, including bearings and plates of magnetic material, making it a versatile tool for many industrial processes.
- Safe and Clean: Induction heating does not produce smoke or other harmful emissions, making it a cleaner and safer heating method compared to traditional methods.
- Easy to Use: The feather touch keyboard and visible operating modes make the induction heater simple and easy to use, even for operators with limited technical expertise.
Durable: The induction heater is designed with durability in mind, ensuring a long lifespan and reliable performance, even in harsh industrial environments.
Applications of Induction Heater GM 04 M (3.6 /4.6 KVA)
The Induction Heater GM 04 M (3.6 /4.6 KVA) from GM Industries has various applications in different industries, including:
- Automotive Industry: The induction heater is used to heat and expand parts during assembly, such as gears, shafts, and bearings.
- Manufacturing Industry: The heater is used to heat metals for forging, forming, and welding processes, including brazing, soldering, and annealing.
- Aerospace Industry: The induction heater is used to heat and form metal components for aircraft, including engine parts, landing gear, and hydraulic systems.
- Electrical Industry: The heater is used for induction brazing of electrical contacts and connectors, as well as induction annealing of copper wires.
- Oil and Gas Industry: The Industrial induction heater is used to heat and expand pipes and couplings during maintenance and repair work, as well as to preheat metal before welding.
- Mining Industry: The induction heater is used for heating and expanding couplings and bearings in conveyor systems and other mining equipment.
- Metalworking Industry: The heater is used for heating and bending metal sheets and pipes, as well as for surface hardening and heat treatment of metals.
Overall, the Induction Heater GM 04 M (3.6 /4.6 KVA) offers a versatile and efficient heating solution for various industries, providing precise and consistent heating of metal objects while minimizing energy costs and emissions.
Why Choose Us?
GM Industries offers a high-quality Industrial Induction Heater with a power value of 3.0/4.0 KVA that is suitable for a wide range of industrial applications. With its intelligent microcontroller-based programmable electronic controls, the GM 04 Induction Heater provides precise control and efficient heating for various materials. Additionally, the company offers industry-wide applications to help customers choose the right Induction Heater for your specific needs. Whether it’s for the automotive, aerospace, manufacturing, electrical, or construction industry, GM Industries has the expertise and experience to provide customers with the right solution. By choosing GM Industries, customers can be confident that they are getting a reliable and efficient Induction Heater that will meet their industrial heating needs.
