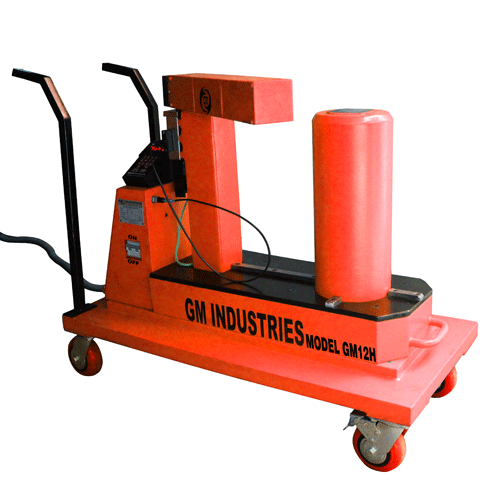

Induction Heater GM 12 H (12/16 KVA)
Introduction to Induction Heater GM 12 H (12/16 KVA)
An induction heater is a device that uses electromagnetic induction to heat up an electrically conductive material. The power value of the GM Induction Heater is 12 / 16 KVA, indicating its ability to provide high-power induction heating for various components.
GM Induction Heaters, specifically designed to heat bearings, pinions, and other shrink-fit components for mounting, are equipped with the latest technology intelligent microcontroller-based electronic controls. The purpose of expanding these components through induction heating is to avoid cutting short the life of bearings and other torque transmitting steel components due to rough handling and faulty installation or mounting methods.
The GM Induction Heaters are available in different models for mounting a range of bearings with bore sizes from 10 mm and above. The best features of GM Induction heaters are fast, safe, and economical heating of bearings.
The GM12 Horizontal Model is a heavy capacity heater capable of heating a bearing of up to 60 kg to a temperature of 110oC within just 7 minutes. This model comes with a manual or automated Roll-sliding arrangement for the standard yoke 80x80x500 mm, providing additional safety, ease of operation, and helping to improve productivity. The Roll-Sliding arrangement is designed in such a way that the yoke gets lifted mechanically or automatically rolls off from the Horizontal supports without rubbing or damaging the mating surfaces.
GM Industries is a company that manufactures high-quality industrial equipment, including induction heaters. Their induction heaters are known for their superior technology, safety features, and high efficiency. The company has a strong commitment to customer satisfaction, and they continuously strive to improve their products and services to meet the ever-changing needs of their clients.
Specifications of Induction Heater GM 12 H (12/16 KVA)
| Product Name | Induction Heater GM 12 H (12/16 KVA) |
| Model No | GM 10 M |
| Bearing Weight | 75 Kg |
| Bearing Diameter | 50 to 650 mm |
| Power | 12 / 16 KVA |
| Voltage | 415V ± 10%, 50-60 Hz |
| Current (Max) | 32 / 40A |
| Power Control | In step of 10% or 25% to 100% |
| Temperature Control (Range) | 0-250oC |
| Maximum Temperature | 400oC |
| Accuracy Temperature | ± 3oC |
| Time-Control | 0-99 Minutes |
| Demagnetisation (Automatic) | <2 A/cm |
| Overall dimensions (wxdxh) (mm) | 590X 360 X 490 |
| Space between supports (wxh) (mm) | 315 X 210 |
| Weight (Main Unit) | 90 Kg |
| Weight with Standard Yokes | 120 Kg |
| Horizontal York Sizes (mm) | 80 X 80 X 500 for bore dia. 112 MM & above |
| Colour of the Equipment | Red
Blue Green |
Optional Accessories
| Horizontal Yoke Sizes (mm) | 30 X 30 X 500
50 X 50 X 500 60 X 60 X 500 70 X 70 X 500 |
| Digital Thermometer (0-500 Degree C) | |
| Roll-Sliding Model | |
| Swing Arm Model | |
| Riser Block (Pair) (mm) | |
| Magnetic Temperature Probe | |
| Equipment Trolley | |
| Hydraulic Equipment Trolley | |
| Hydraulic Stacker for loading & unloading of Component |
Call Us
+(91)-9820533489 / 7738562224
Enquiry Form
Submit
Features of Induction Heater GM 12 H (12/16 KVA)
The GM 12 H Induction Heater is a powerful heating device designed for industrial applications. It has a power rating of 12/16 KVA, which indicates its ability to provide high-power induction heating for various components. Some of the notable features of the GM 12 H Induction Heater are:
- Intelligent Microcontroller-Based Electronic Control: The GM 12 H Induction Heater is equipped with the latest technology intelligent microcontroller-based electronic control, which ensures precise and efficient heating of the components.
- Heavy Capacity: The Induction Heater has a heavy capacity and can heat components weighing up to 60 kg to a temperature of 110 oC within just 7 minutes.
- Automated Roll-Sliding Arrangement: The GM 12 H Induction Heater comes with an automated roll-sliding arrangement for the standard yoke 80x80x500 mm. This arrangement provides additional safety, ease of operation, and helps to improve productivity.
- Fast, Safe, and Economical Heating: The GM 12 H Heater is designed for fast, safe, and economical heating of bearings, pinions, and other shrink-fit components for mounting.
- Compact and Portable Design: The GM 12 H Induction Heater has a compact and portable design, making it easy to move and use in different locations.
- Durable Construction: The Industrial Induction Heater is made of high-quality materials and is built to last, ensuring reliable performance and long-lasting durability.
Overall, the GM 12 H Induction Heater is an excellent choice for industrial applications that require fast, safe, and efficient heating of components. Its intelligent microcontroller-based electronic control, heavy capacity, automated roll-sliding arrangement, and compact and portable design make it a reliable and convenient heating device for various industrial settings.
Advantages of Induction Heater GM 12 H (12/16 KVA)
The GM 12 H Induction Heater is a powerful heating device that offers numerous advantages for industrial applications. Some of the key advantages of the GM 12 H Induction Heater are:
- Fast Heating: The GM 12 H Induction Heater is designed for fast and efficient heating of bearings, pinions, and other shrink-fit components for mounting. It can heat components weighing up to 60 kg to a temperature of 110oC within just 7 minutes, which helps to improve productivity.
- Energy-Efficient: The Induction Heater is designed to be energy-efficient, as it uses induction heating technology that minimizes energy waste. This helps to reduce energy consumption and save on operating costs.
- Consistent Heating: The GM 12 H Induction Heater provides consistent heating for the components, ensuring that they are heated evenly and efficiently. This helps to prevent damage to the components and ensures that they are mounted correctly.
- Easy to Use: The GM 12 H Induction Heater is easy to use, as it comes with an intuitive control panel and automated roll-sliding arrangement. This makes it easy for operators to set up and use the device, even with limited training or experience.
- High-Quality Output: The Induction Heater produces high-quality output, ensuring that the components are heated to the desired temperature without overheating or under heating. This helps to ensure that the components are mounted correctly and that they perform reliably.
Overall, the GM 12 H Induction Heater is an excellent choice for industrial applications that require fast, safe, and efficient heating of components. Its fast heating, precise temperature control, safe and economical heating, automated roll-sliding arrangement, portable design, and durable construction make it a reliable and convenient heating device for various industrial settings.
Applications of Induction Heater GM 12 H (12/16 KVA)
The GM 12 H Induction Heater is a versatile heating device that can be used in various industries for different applications. Some of the applications of the GM 12 H Induction Heater in different industries are:
- Automotive Industry: In the automotive industry, the GM 12 H Induction Heater is used to heat bearings, gears, and other shrink-fit components for mounting. This helps to ensure that the components are installed correctly and perform reliably.
- Aerospace Industry: In the aerospace industry, the GM 12 H Induction Heater is used to heat bearings and other components for maintenance and repair. This helps to ensure that the components are in optimal condition and meet the required specifications.
- Mining Industry: In the mining industry, the GM 12 H Induction Heater is used to heat bearings and other components for maintenance and repair of mining equipment.
- Manufacturing Industry: In the manufacturing industry, the GM 12 H Induction Heater is used to heat various components for assembly and production. This includes heating gears, sprockets, and other components for various types of machinery.
- Power Generation Industry: In the power generation industry, the GM 12 H Induction Heater is used to heat turbine components, such as bearings and blades, for maintenance and repair.
- Marine Industry: In the marine industry, the GM 12 H Induction Heater is used to heat various components for maintenance and repair of marine equipment. This includes heating bearings, gears, and other components for ships and boats.
Overall, the GM 12 H Induction Heater can be used in various industries for different applications, including heating bearings, gears, and other shrink-fit components for mounting, maintenance, and repair of equipment, and assembly and production of machinery. Its versatile applications make it a valuable heating device in many industries.
Why Choose Us?
GM Industries offers a high-quality Industrial Induction Heater with a power value of 3.0/4.0 KVA that is suitable for a wide range of industrial applications. With its intelligent microcontroller-based programmable electronic controls, the GM 04 Induction Heater provides precise control and efficient heating for various materials. Additionally, the company offers industry-wide applications to help customers choose the right Induction Heater for your specific needs. Whether it’s for the automotive, aerospace, manufacturing, electrical, or construction industry, GM Industries has the expertise and experience to provide customers with the right solution. By choosing GM Industries, customers can be confident that they are getting a reliable and efficient Induction Heater that will meet their industrial heating needs.
