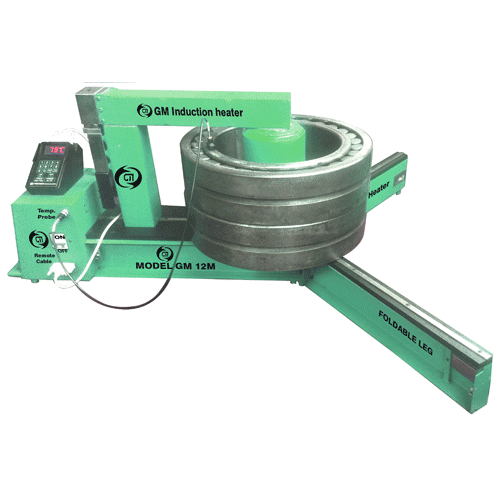

Induction Heater GM 12 M (10/12 KVA)
Introduction to Induction Heater GM 12 M (10/12 KVA)
An industrial induction heater is a tool that utilizes electromagnetic induction to heat metal components. It operates by passing high-frequency AC current through a copper coil, which generates a magnetic field. The magnetic field induces eddy currents within the metal component, and the resistance of these currents produces heat that causes the metal to expand.
GM Induction Heaters are designed to heat bearings, pinions, and other shrink-fit components for mounting using the latest technology intelligent microcontroller-based electronic controls. With a power value of 10/12 KVA, GM Induction Heaters are available in different models suitable for mounting bearings with bore sizes ranging from 10 mm and above. The heaters offer fast, safe, and economical heating of bearings, making them an ideal choice for various industrial applications.
The primary application of GM Induction Heaters is in the mounting of torque transmitting steel components that are shrunk-fit onto a shaft. By expanding these components with induction heating, the risk of damage due to rough handling and faulty installation is minimized, thereby prolonging their lifespan.
GM 12 M Induction Heater can heat a bearing of up to 60 kg to a temperature of 110°C in just 7 minutes. The yoke is manually arranged and has a dimension of 40x40x450 mm. The Roll-Sliding arrangement is designed to ensure that the yoke is lifted mechanically or rolls off from the vertical supports without damaging or scraping mating surfaces, providing added safety, ease of operation, and increased productivity.
GM Industries is a leading manufacturer of high-quality industrial tools and equipment, including GM Induction Heaters. With a commitment to innovation, GM Industries continues to provide cutting-edge solutions to meet the needs of various industrial applications.
Specifications of Induction Heater GM 12 M (10/12 KVA)
| Product Name | Induction Heater GM 12 M (10/12 KVA) |
| Model No | GM 12 M |
| Bearing Weight | 315 Kg |
| Bearing Diameter | 50 to 650 mm |
| Power | 10/12 KVA |
| Voltage | 415V ± 10%, 50-60 Hz |
| Current (Max) | 32 / 40A |
| Power Control | In step of 10% or 25% to 100% |
| Temperature Control (Range) | 0-250oC |
| Maximum Temperature | 400 oC |
| Accuracy Temperature | ± 3 oC |
| Time-Control | 0-99 Minutes |
| Demagnetisation (Automatic) | <2 A/cm |
| Overall dimensions (wxdxh) (mm) | 850 X 265 X 480 |
| Space between supports (wxh) (mm) | 260 X 260 |
| Weight (Main Unit) | 76 Kg |
| Weight with Standard Yokes | 94 Kg |
| Horizontal York Sizes (mm) | 40 X 40 X 450 70 X 70 X 450 |
| Colour of the Equipment | Red
Blue Green |
Optional Accessories
| Horizontal Yoke Sizes (mm) | 30 X 30 X 450
50 X 50 X 450 60 X 60 X 450 765 X 65 X 450 |
| Digital Thermometer (0-500 oC) | |
| Roll-Sliding Model | |
| Swing Arm Model | |
| Riser Block (Pair) (mm) | |
| Magnetic Temperature Probe | |
| Equipment Trolley | |
| Hydraulic Equipment Trolley | |
| Customisation |
Call Us
+(91)-9820533489 / 7738562224
Enquiry Form
Submit
Features of Induction Heater GM 12 M (10/12 KVA)
The GM 12 M Induction Heater is a high-performance tool with a power value of 10/12 KVA, designed for heating industrial components for mounting. The features of this induction heater include:
- Heavy capacity: The GM 12 M Induction Heater has a heavy-duty capacity, making it suitable for heating large components with a weight of up to 60 kg.
- Intelligent microcontroller-based electronic control: The induction heater is equipped with an intelligent microcontroller-based electronic control system, ensuring accurate and precise heating of the components.
- Fast heating: The GM 12 M Heater has a fast heating time, capable of heating a bearing to a temperature of 110°C within 7 minutes, improving productivity in industrial processes.
- Yoke with manual arrangement: The yoke of the induction heater is manually arranged and has a dimension of 40x40x450 mm, making it easy to handle and position the components during heating.
- Roll-Sliding arrangement: The industrial induction heater is equipped with a Roll-Sliding arrangement designed to lift the yoke mechanically or roll it off from the vertical supports without damaging or scraping mating surfaces, ensuring added safety and ease of operation.
Overall, the GM 12 M Induction Heater is a reliable and efficient tool that offers fast, safe, and economical heating of industrial components, making it an ideal choice for various industrial applications.
Advantages of Induction Heater GM 12 M (10/12 KVA)
The GM 12 M Induction Heater is a powerful and reliable tool that offers numerous advantages for industrial applications. Some of the key advantages of this induction heater include:
- Fast Heating: The GM 12 M Induction Heater can heat components to the desired temperature within a short period of time, improving the efficiency of industrial processes.
- Precise Heating: With its intelligent microcontroller-based electronic control system, the Induction Heater provides accurate and precise heating, ensuring consistent quality of the components.
- Safe and Easy to Use: The Roll-Sliding arrangement of the induction heater ensures that the yoke is lifted or rolled off from the vertical supports without damaging the mating surfaces, ensuring safety and ease of use.
- Energy Efficient: Induction heating is an energy-efficient process that minimizes energy waste, making the GM 12 M Induction Heater a cost-effective tool for industrial applications.
- Low Maintenance: The GM 12 M Induction Heater requires minimal maintenance, reducing downtime and increasing productivity.
- Versatile: The induction heater is suitable for a wide range of industrial applications, making it a versatile tool that can be used in different settings.
Overall, the GM 12 M Induction Heater offers numerous advantages for industrial applications, including fast heating, precise heating, safety, energy efficiency, low maintenance, and versatility.
Applications of Induction Heater GM 12 M (10/12 KVA)
The GM 12 M Induction Heater is a versatile tool that can be used in various industries for different applications. Some of the industrial applications of this induction heater include:
- Automotive Industry: In the automotive industry, the GM 12 M Induction Heater is used to heat components such as bearings, pinions, and gears for mounting.
- Aerospace Industry: In the aerospace industry, the induction heater is used to heat components such as turbine blades, compressor discs, and bearings for assembly.
- Electrical Industry: In the electrical industry, the GM 12 M Induction Heater is used to heat components such as copper bars, cables, and connectors for brazing and soldering.
- Heavy Equipment Industry: In the heavy equipment industry, the induction heater is used to heat components such as gears, bearings, and shafts for assembly.
- Construction Industry: In the construction industry, the GM 12 M Induction Heater is used to heat components such as bolts, nuts, and anchors for installation.
- Oil and Gas Industry: In the oil and gas industry, the induction heater is used to heat components such as valves, flanges, and pipes for maintenance and repair.
Overall, the GM 12 M Induction Heater is a versatile tool that can be used in various industries for different applications, providing fast, safe, and efficient heating of industrial components.
Why Choose Us?
GM Industries offers a high-quality Industrial Induction Heater with a power value of 3.0/4.0 KVA that is suitable for a wide range of industrial applications. With its intelligent microcontroller-based programmable electronic controls, the GM 04 Induction Heater provides precise control and efficient heating for various materials. Additionally, the company offers industry-wide applications to help customers choose the right Induction Heater for your specific needs. Whether it’s for the automotive, aerospace, manufacturing, electrical, or construction industry, GM Industries has the expertise and experience to provide customers with the right solution. By choosing GM Industries, customers can be confident that they are getting a reliable and efficient Induction Heater that will meet their industrial heating needs.
