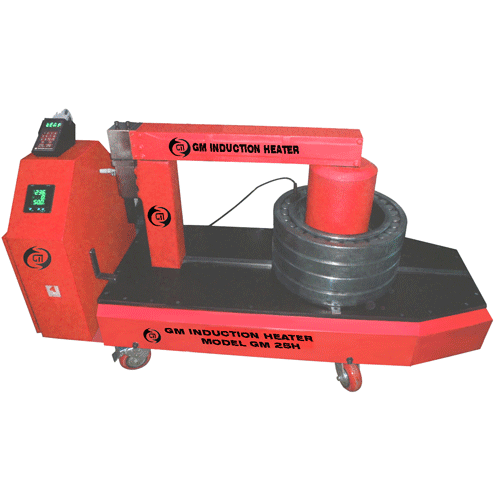

Induction Heater GM 25 H (25/40 KVA)
Introduction to Induction Heater GM 25 H (25/40 KVA)
An induction heater is a device that uses electromagnetic induction to heat metal components by producing an alternating magnetic field. The heat is generated within the metal itself, making the process fast and efficient. The power of an induction heater is measured in kilovolt-amperes (KVA), which represents the maximum amount of power it can deliver.
The GM 25 Induction Heater is a powerful device with a power rating of 25/40 KVA. It is designed specifically to heat bearings, pinions, and other shrink-fit components for mounting using intelligent microcontroller based electronic controls. The device can heat components quickly, safely, and economically, which makes it an ideal choice for industrial applications.
The Induction Heater is capable of heating components with a weight of up to 500 kg to a temperature as required in a customized time. It comes equipped with a manual or automated roll-sliding arrangement for the standard yoke, which ensures safe and easy handling of the components. The device weighs between 300 and 375 kg, making it heavy-duty and durable.
GM Industries is a renowned manufacturer of high-quality industrial equipment, including induction heaters. With decades of experience and expertise, the company is committed to delivering innovative and reliable solutions to meet the needs of its customers. The GM 25 Induction Heater is a testament to the company’s commitment to excellence and customer satisfaction.
Specifications of Induction Heater GM 25 H (25/40 KVA)
| Product Name | Induction Heater GM 25 H (25/40 KVA) |
| Model No | GM 25 H |
| Bearing Weight | 750/1250 kg |
| Bearing Diameter | 60 to 1000 mm |
| Power | 25 / 40 KVA |
| Voltage | 415V ± 10%,50-60Hz |
| Current (Max) | 60 / 100A |
| Power Control | In step of 10% or 25% to 100% |
| Temperature Control (Range) | 0-400oC |
| Maximum Temperature | 400oC |
| Accuracy Temperature | ± 3oC |
| Time-Control | 0-99 Minutes |
| Demagnetisation (Automatic) | <2 A/cm |
| Overall dimensions (wxdxh) (mm) | 1000 X 590 X 850 |
| Space between supports (wxh) (mm) | 350 X 450 |
| Weight (Main Unit) | 300Kg/375Kg |
| Weight with Standard Yokes | 345Kg/425Kg |
| Horizontal York Sizes (mm) | 100 X 100 X 625 for bore dia. 140 MM & above |
| Colour of the Equipment | Red
Blue Green |
Optional Accessories
| Horizontal Yoke Sizes (mm) | 50 X 50 X 625 for bore dia. 68 MM & above
60 X 60 X 625 for bore dia. 83 MM & above 70 X 70 X 625 for bore dia. 95 MM & above 80 X 80 X 625 for bore dia. 112 MM & above |
| Digital Thermometer (0-500 oC) | |
| Roll-Sliding Model | |
| Swing Arm Model | |
| Riser Block (Pair) (mm) | |
| Magnetic Temperature Probe | |
| Equipment Trolley | |
| Hydraulic Equipment Trolley | |
| Customisation |
Call Us
+(91)-9820533489 / 7738562224
Enquiry Form
Submit
Features of Induction Heater GM 25 H (25/40 KVA)
The GM 25 H Induction Heater is a powerful and reliable device that comes with several advanced features to make the process of heating metal components quick and efficient. Here are some of the key features of this device:
- High power rating: The GM 25 H has a power rating of 25/40 KVA, which makes it capable of heating even the largest and heaviest metal components quickly and effectively.
- Microcontroller-based electronic controls: The device comes equipped with intelligent microcontroller-based electronic controls that ensure precise and accurate temperature control. This helps to avoid overheating or under heating of the metal components, which can cause damage or reduce their lifespan.
- Fast and efficient heating: The GM 25 H uses electromagnetic induction to generate heat within the metal components themselves. This makes the process of heating fast and efficient, which helps to save time and increase productivity.
- Roll-sliding arrangement: The device comes with a manual or automated roll-sliding arrangement for the standard yoke. This ensures safe and easy handling of the metal components, which helps to avoid damage and improve efficiency.
- Heavy-duty construction: The GM 25 H is built to last, with a durable and robust construction that can withstand the rigors of industrial use. It is designed to handle even the toughest heating tasks with ease, making it a reliable and cost-effective investment for any industrial operation.
Overall, the GM 25 H Induction Heater is an advanced and highly capable device that offers fast, efficient, and precise heating of metal components. Its advanced features make it an ideal choice for a wide range of industrial applications, and its durable construction ensures reliable performance for years to come.
Advantages of Induction Heater GM 25 H (25/40 KVA)
The GM 25 H Induction Heater offers several advantages over other methods of heating metal components. Here are some of the key benefits of using this device:
- Fast heating: The GM 25 H uses electromagnetic induction to heat metal components, which generates heat within the component itself. This process is fast and efficient, which helps to save time and increase productivity.
- Precise temperature control: The device comes equipped with intelligent microcontroller-based electronic controls that ensure precise and accurate temperature control. This helps to avoid overheating or under heating of the metal components, which can cause damage or reduce their lifespan.
- Safe and easy handling: The device comes with a manual or automated roll-sliding arrangement for the standard yoke, which ensures safe and easy handling of the metal components. This helps to avoid damage and improve efficiency.
- Versatility: The GM 25 H is designed to heat a wide range of metal components, including bearings, pinions, and other shrink-fit components. It is available in different models for mounting a range of bearings with bore sizes from 10mm and above.
- Energy-efficient: The device uses electromagnetic induction to generate heat, which is more energy-efficient than other methods of heating, such as gas or oil-fired furnaces. This helps to reduce energy costs and lower carbon emissions.
- Cost-effective: The GM 25 H is a durable and long-lasting device that is built to withstand the rigors of industrial use. Its advanced features and efficient heating process make it a cost-effective investment for any industrial operation.
Overall, the GM 25 H Induction Heater offers a range of advantages over other methods of heating metal components. Its fast heating, precise temperature control, and safe handling make it an ideal choice for a wide range of industrial applications, while its energy efficiency and cost-effectiveness make it a smart investment for any business.
Applications of Induction Heater GM 25 H (25/40 KVA)
The GM 25 H Induction Heater is a versatile device that can be used in a wide range of industries and applications. Here are some of the most common applications of this device across various industries:
- Automotive industry: The GM 25 H Induction Heater is commonly used in the automotive industry for heating metal components such as bearings, pinions, and gears. These components are often heated before installation to make them easier to fit onto shafts.
- Aerospace industry: The device is also used in the aerospace industry for heating metal components such as turbine blades and engine parts. This helps to ensure a tight fit between the components and the rest of the engine or turbine.
- Heavy machinery industry: The Induction Heater is often used in the heavy machinery industry for heating metal components such as couplings, shafts, and gears. This helps to ensure a tight fit between the components and reduces the risk of damage or wear.
- Manufacturing industry: The device is widely used in the manufacturing industry for heating metal components such as bolts, nuts, and screws. This helps to ensure that these components are securely fastened to the rest of the machinery or equipment.
- Power generation industry: The Induction Heater GM 25 H (25/40 KVA) is used in the power generation industry for heating metal components such as steam turbine parts and generator components. This helps to ensure a tight fit between the components and reduces the risk of damage or wear.
Overall, the GM 25 H Induction Heater is a versatile device that can be used in a wide range of industries and applications. Its fast, efficient, and precise heating capabilities make it an ideal choice for any application where metal components need to be heated for installation or repair.
Why Choose Us?
GM Industries offers a high-quality Industrial Induction Heater with a power value of 3.0/4.0 KVA that is suitable for a wide range of industrial applications. With its intelligent microcontroller-based programmable electronic controls, the GM 04 Induction Heater provides precise control and efficient heating for various materials. Additionally, the company offers industry-wide applications to help customers choose the right Induction Heater for your specific needs. Whether it’s for the automotive, aerospace, manufacturing, electrical, or construction industry, GM Industries has the expertise and experience to provide customers with the right solution. By choosing GM Industries, customers can be confident that they are getting a reliable and efficient Induction Heater that will meet their industrial heating needs.
